CHT4-0 (Sensorelement)
Beschreibung
Für Einbau in robustes Metallgehäuse geeignet
- Ø 63 mm Gesamtdurchmesser
- 9,7 mm Bauhöhe des Sensorelements
ANWENDUNG: GEBÄUDETECHNIK | VERKEHR UND TRANSPORT | AUTOMATISIERUNGSTECHNIK
- Benötigtes Zubehör AH4-1X9/CPM07
(110 mm x 110 mm) - Individualisierung
durch Symbole - optional
Taktile Rückmeldung (Vibration)
Akustische Rückmeldung (Signalton)
12V DC Version
Downloads CHT4-0
![csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702 csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702](/fileadmin/_processed_/d/7/csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702.jpg)
![csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb](/fileadmin/_processed_/2/8/csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb.jpg)
![csm_CAPTRON-thumb-set-konfigurationsanleitung_625adcb3fe csm_CAPTRON-thumb-set-konfigurationsanleitung_625adcb3fe](/fileadmin/_processed_/0/1/csm_CAPTRON-thumb-set-konfigurationsanleitung_625adcb3fe.jpg)
![csm_thumb-CAPTRON-certificate-ece-r118_62db300f72 csm_thumb-CAPTRON-certificate-ece-r118_62db300f72](/fileadmin/_processed_/d/6/csm_thumb-CAPTRON-certificate-ece-r118_62db300f72.jpg)
![csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d](/fileadmin/_processed_/d/e/csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d.jpg)
![csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c](/fileadmin/_processed_/e/7/csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c.jpg)
![csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e](/fileadmin/_processed_/f/3/csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e.jpg)
![csm_CAPTRON-Thumb-SENSORswitches-Symbol-List_a6e166b498 csm_CAPTRON-Thumb-SENSORswitches-Symbol-List_a6e166b498](/fileadmin/_processed_/2/a/csm_CAPTRON-Thumb-SENSORswitches-Symbol-List_a6e166b498.jpg)
![csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db](/fileadmin/_processed_/4/c/csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db.jpg)
Service und Support
Produktbilder

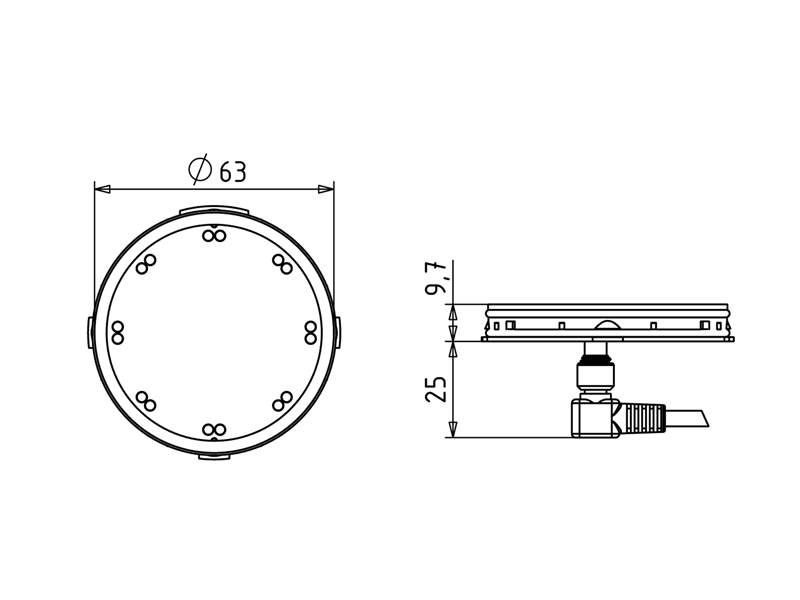

Technische Zeichnungen
Anwendungsbilder
Funktionen
Taktile Rückmeldung: Vibration
Akustische Rückmeldung: Signalton
Funktion: Dynamisch (Signaldauer begrenzt)
Manual
Semi-Automatic
Automatic
Schaltausgang: PNP - Transistor
Technische Daten
Betriebsspannung |
12V DC (optional) 24V DC |
Ausgangsimpuls |
ca. 300 ms (dynamisch) |
Optisches Feedback |
16 LEDs wechselnd (max. 2 Farben) |
Taktile Rückmeldung |
Vibration |
Akustische Rückmeldung |
Signalton (optional) |
Befestigungsart |
Clipmontage |
Anschluss |
M8 JST Kabel + AMP 6,3 Einzellitzen |
Ausgang |
PNP-NO PNP/NPN Wechsler Einzellitzen (Automatic) |
Betriebstemperatur |
-30°C…+80°C (dynamisch) |
Sensormaterial |
Polycarbonat (PC) |
Passende Produkte
AH4-1X9/CPM07
Aufnahmehalter für CHT4-0
- Aufnahmehalter aus eloxiertem Aluminium
- Optional aus Edelstahl
ANWENDUNG: GEBÄUDEAUTOMATISIERUNG | ANLAGENBAU
Kabel M8
M8 Kabel zur Sensoranbindung
- Buchse gerade oder gewinkelt
- verschiedene Längen verfügbar
- verschiedene Aderzahlen verfügbar
- Schraub- oder Snap-In-Montage
ANWENDUNG: VERKEHR UND TRANSPORT | AUTOMATISIERUNGSTECHNIK
