CHT9-Q/CP148 (Fußtaster)
Beschreibung
Fußbetätigung ohne Kraftaufwand
- Ø 63 mm Tastfläche
- Robustes Aluminium-Gehäuse
- Für hohen Designanspruch
- Mit M12 Anschluss
ANWENDUNG: AUTOMATISIERUNGSTECHNIK
- Individualisierung
durch Symbole und Gehäusefarben - keine Betätigungskraft notwendig
- 100 % wasser- und öldicht - IP69K
Sensor ist komplett mit Spezialharz vergossen
Downloads CHT9-Q/CP148
![csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702 csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702](/fileadmin/_processed_/d/7/csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702.jpg)
![csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb](/fileadmin/_processed_/2/8/csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb.jpg)
![csm_CAPTRON-thumb-set-konfigurationsanleitung_625adcb3fe csm_CAPTRON-thumb-set-konfigurationsanleitung_625adcb3fe](/fileadmin/_processed_/0/1/csm_CAPTRON-thumb-set-konfigurationsanleitung_625adcb3fe.jpg)
![csm_thumb-CAPTRON-certificate-ece-r118_62db300f72 csm_thumb-CAPTRON-certificate-ece-r118_62db300f72](/fileadmin/_processed_/d/6/csm_thumb-CAPTRON-certificate-ece-r118_62db300f72.jpg)
![csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d](/fileadmin/_processed_/d/e/csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d.jpg)
![csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c](/fileadmin/_processed_/e/7/csm_CAPTRON-Thumb-SENSORtaster-Technisches-Dossier_f33082004c.jpg)
![csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e](/fileadmin/_processed_/f/3/csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e.jpg)
![csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db](/fileadmin/_processed_/4/c/csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db.jpg)
Service und Support
Produktbilder

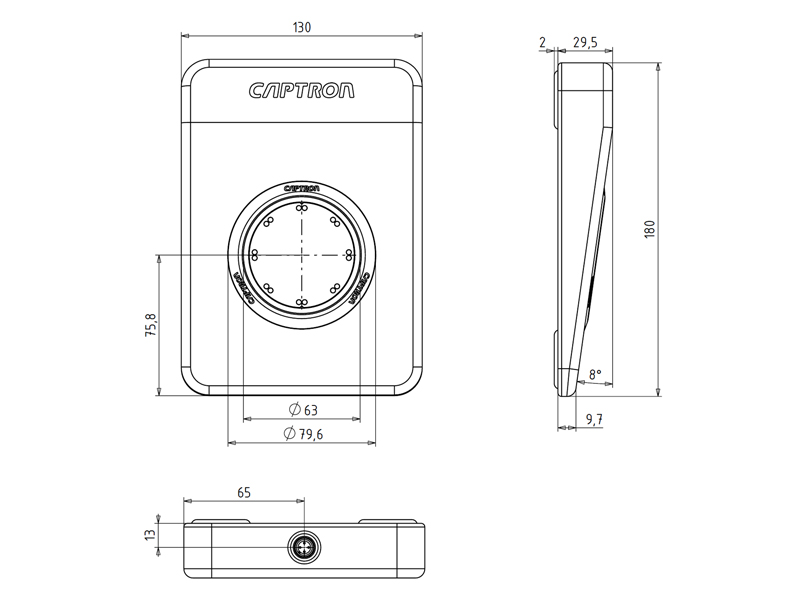

Technische Zeichnungen
Anwendungsbilder
Farben
Gehäuse titansilber (Aluminium lackiert)
Funktionen
Funktion: Dynamisch (Signaldauer begrenzt)
Semi-Automatic
Schaltausgang: PNP - Transistor
Technische Daten
Betriebsspannung |
24V DC |
Ausgangsimpuls |
ca. 300 ms (dynamisch) |
Optisches Feedback |
16 LEDs wechselnd (max. 2 Farben) |
Befestigungsart |
Schraubmontage |
Anschluss |
M12 |
Ausgang |
PNP |
Betriebstemperatur |
-30°C...+80°C |
